ISO 8 – Medium duty fixing for insulated walls

Fixing on walls with insulating panels up to 100mm thick

  •  The use of several components increases thermal insulation.
  • The 35mm long ending joint is shaped in order to simplify the item’s entrance into the insulating panel with M6 and M8 threads.
  • Complete with cover washer to guarantee the thermal closure of the hole.
  • The Giolli plug guarantees a reliable and strong grip on any kind of wall. Install it by using the so called “PTN 10” inserting tool (cod. 120010).
Download the Technical Sheet

Material technical data

  • SCREW AND CONNECTOR = Steel 4.8 EN ISO 898-1 with electro zinc plating 7-8 μm
  • PLUG = PP Polypropylene
  • COVERING WASHER = PP Polypropylene
  • THREADED RODS AND BOLT = Stainless steel AISI 304 – EN 10088
COD Type Description Basic material Minimum drilling depth
120050ISO 8x100For insulated walls (mm) 40 -65Maonry, EPS and XPS panels140
Aggiungi / Rimuovi
120055ISO 8x140For insulated walls (mm) 80 - 105Masonry, EPS and XPS panels180
Aggiungi / Rimuovi
COD Type A B D E G H R
120050ISO 8x100M8100sw 1327327010
Aggiungi / Rimuovi
120055ISO 8x140M8140sw 1327327010
Aggiungi / Rimuovi

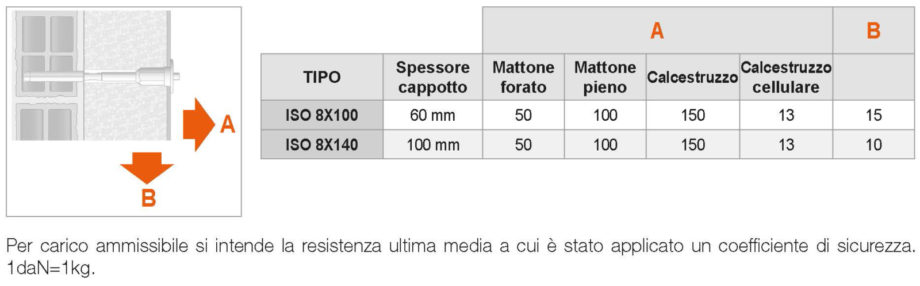

Recommended load is the average resistance loads with a safety coefficient. 1 daN=1 kg.

Venduti in Transparent bags

COD Type L P H Pieces pack Packing pieces
120050ISO 8x1000,310,210,15130
Aggiungi / Rimuovi
120055ISO 8x1400,310,210,15130
Aggiungi / Rimuovi
