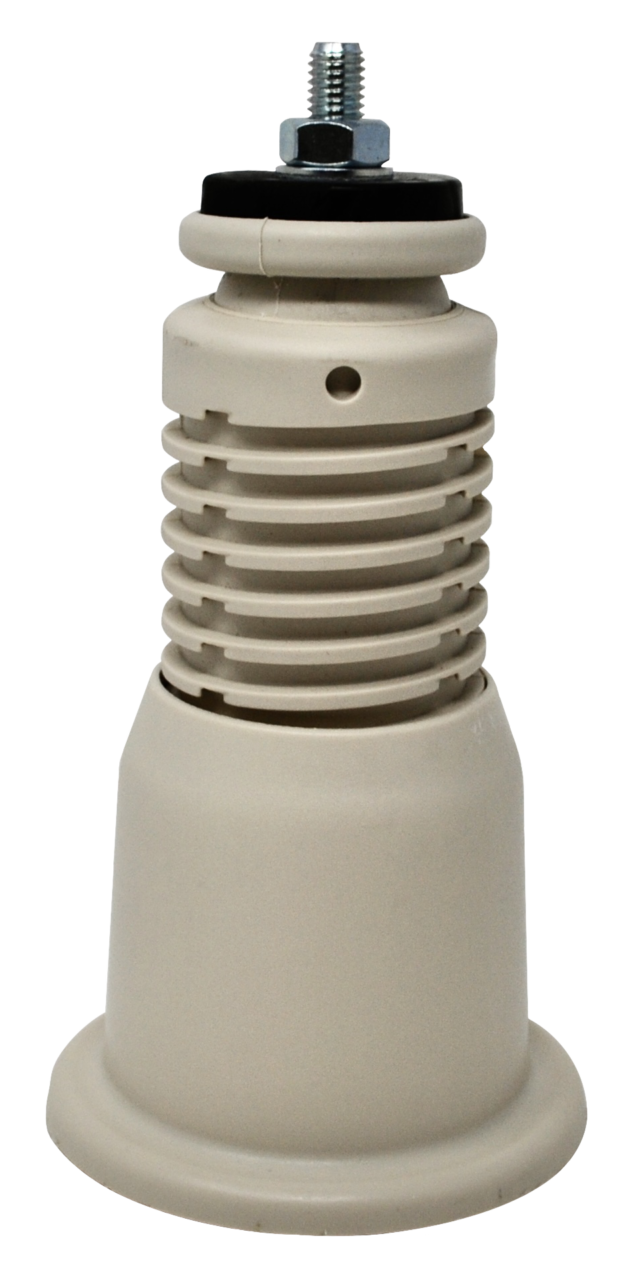

KONG – Ø100 MM GROUND SUPPORT WITH SCREW

Ground supports for air-conditioning outdoor units or boilers.

  • Ground support made of polypropylene reinforced with fibreglass. Highly resistant to bad weather conditions, and UV stabilized. Designed with a fixed height of 100 mm, this support is provided with an upper junction,which makes it able to fit the slope of the ground.
  • Complete with M10 nut and bolt for the unit’s fastening.
  • It is also equipped with two NBR rubber seals: one of them is set at the top – on the upper junction – to absorb vibrations; the other one is set at the bottom in order to make the support more stable, while preventing sliding and vibration spread as well.
  • It is available in two different colours: black and ivory.
  • Working temperature: -30°C / +75°C

KONG - Ø100 MM GROUND SUPPORT WITH SCREW

Download the Technical Sheet

Material technical data

  • SUPPORT: PP Polypropylene reinforced with fiberglass - Ivory or black
  • FIXING: Steel 4.8 DIN 933-8.8 with electro zinc-plating 7-8  m EN ISO
  • SEALS: NBR rubber
COD Type Description
550105KONG WIvory
Aggiungi / Rimuovi
550106KONG BBlack
Aggiungi / Rimuovi
COD Type A B C D
550106KONG BØ100100Ø50M10
Aggiungi / Rimuovi
550105KONG WØ100100Ø50M10
Aggiungi / Rimuovi

F = concentrated load (in Kg)

COD Type F
550105KONG W150
Aggiungi / Rimuovi
550106KONG B150
Aggiungi / Rimuovi

Venduti in Cardboard box

COD Type L P H Pieces pack Packing pieces
550105KONG W222114-4
Aggiungi / Rimuovi
550106KONG B222114-4
Aggiungi / Rimuovi
