PN300 – PN 600 – G-STRUT ANGLE STRENGTHENING SUPPORT

Seismic lateral support. Used as vertical strengthening support for PAP G-Strut brackets.

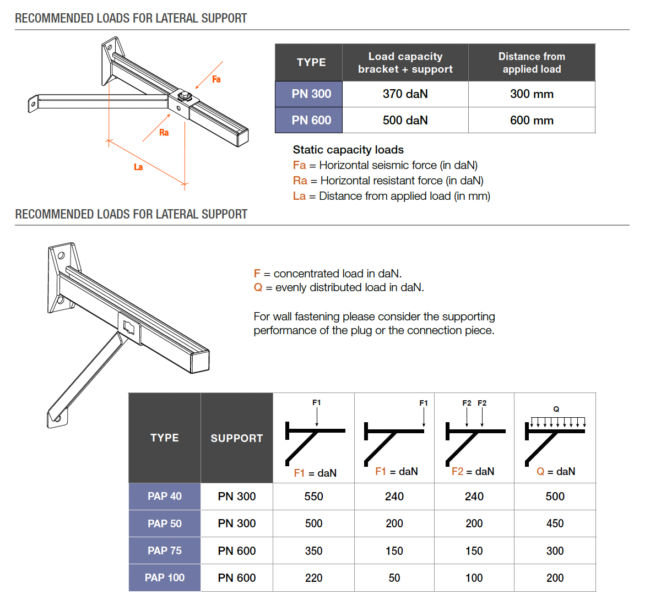

  •  Thanks to its specific shape it can be directly fixed to PAP G-Strut brackets – using the JBR 10 quick connect bolt (cod. 161950) – in order to create lateral seismic support wind-braces.
  • By turning the support vertically it is possible to create a support bracket for PAP G-Strut brackets.

PN300 - PN 600 - G-STRUT ANGLE STRENGTHENING SUPPORT

Download the Technical Sheet

Material technical data

  • MATERIAL = Steel DD11 EN 10111 with sendzimir zinc plating
COD Type
161060PN 300
Aggiungi / Rimuovi
161062PN 600
Aggiungi / Rimuovi
COD Type A B C D
161062PN 600734,4585312,50
Aggiungi / Rimuovi
161060PN 300330285312,50
Aggiungi / Rimuovi

Venduti in Cardboard box

COD Type Packing pieces
161060PN 3006
Aggiungi / Rimuovi
161062PN 6001
Aggiungi / Rimuovi
