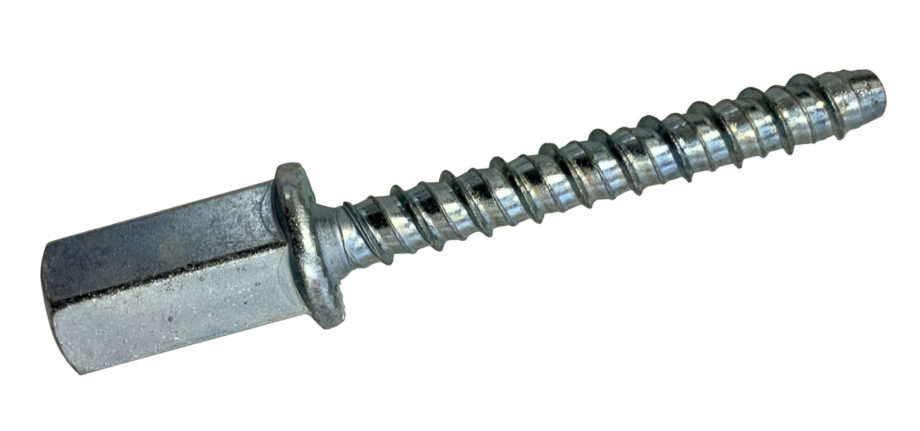

VCLS – FEMALE CONCRETE SCREW
Used for hanging installations with M6, M8 or M10 threaded rods. Suitable to fasten hanging pipe clamps or other fixings on concrete (perfect for certified M10 Sprinkler pipe clamp).
- Screw-shaped anchor, suitable to fasten M6, M8 or M10 threaded rods on concrete.
- Certified: ETA – CE approvals, Resistant to Fire and Seismic action.
- It can be used both near edges and where there are narrow inter-axes distances.
- Very fast installation, it only takes two simple moves: make a hole in the concrete and screw the anchor in.
- It works both on C20/C25 – C50/C60 non-cracked concrete, and on C20/25 – C50/C60 cracked concrete.
- Also suitable for solid non-friable natural stone.
Download the Technical Sheet Material technical data
- Material = Steel with electro zinc plating 7-8 μm
- Base material = Non-cracked concrete C20/25 - C50/C60; Cracked concrete C20/25 - C50/60
| COD | Type | Description | Basic material | Minimum drilling depth | Minimum screwing depth | |
| 130000 | VCLS M6 | For M6 threaded rods | C20/25 - C50/60 cracked and non-cracked concrete | 45 | 35 | Aggiungi / Rimuovi |
| 130001 | VCLS M8 | For M8 threaded rods | C20/25-C50/60 cracked and non-cracked concrete | 65 | 55 | Aggiungi / Rimuovi |
| 130002 | VCLS M10 | For M10 threaded rods | C20/C25 - C50/60 cracked and non-cracked concrete | 65 | 55 | Aggiungi / Rimuovi |
| 130005 | VCLS M8/M10 | For M8 and M10 threaded rods | C20/C25 - C50/60 cracked and non-cracked concrete | 65 | 55 | Aggiungi / Rimuovi |
| COD | Type | A | E | F | H | R | |
| 130005 | VCLS M8/M10 | 13 | M8/M10 | 25 | 80 | 6 | Aggiungi / Rimuovi |
| 130002 | VCLS M10 | 13 | M10 | 15 | 70 | 6 | Aggiungi / Rimuovi |
| 130001 | VCLS M8 | 13 | M8 | 15 | 70 | 6 | Aggiungi / Rimuovi |
| 130000 | VCLS M6 | 13 | M6 | 15 | 50 | 6 | Aggiungi / Rimuovi |
A= tensile strength. Recommended load is the average resistance loads with a safety coefficient. Data expressed in daN. 1daN=1kg. Tested on concrete C20/25 - 3000 psi (20,67 Mpa). Minimum concrete thickness = 100 mm Minimum distance from the edge = 45 mm
| COD | Type | A | |
| 130000 | VCLS M6 | 200 | Aggiungi / Rimuovi |
| 130001 | VCLS M8 | 290 | Aggiungi / Rimuovi |
| 130002 | VCLS M10 | 290 | Aggiungi / Rimuovi |
| 130005 | VCLS M8/M10 | 290 | Aggiungi / Rimuovi |
Venduti in Cardboard box
| COD | Type | |
| 130000 | VCLS M6 | Aggiungi / Rimuovi |
| 130001 | VCLS M8 | Aggiungi / Rimuovi |
| 130002 | VCLS M10 | Aggiungi / Rimuovi |
| 130005 | VCLS M8/M10 | Aggiungi / Rimuovi |
