X-TECH 10X60 – High performing anchor for plasterboard walls

High performing anchor for light duty payloads on plasterboard and empty walls.

  • Specific for plasterboard, both on single layer and double layer.
  • Knot technology: It knots in the inside of drywall or hollow blocks for a quick, very effective, and high resistance fastening
  • Always reliable thanks to the reinforced polymer cone.
  • Metric thread allows fine tightening adjustment.
  • Provided with rounded head metric screw and washer.
  • The wide supporting knot – created during installation – prevents tear.
  • It can be installed both with electric or manual screwdrivers.
Download the Technical Sheet

Material technical data

  • ANCHOR: Polyamide + Reinforced Techno-polymer
  • SCREW AND WASHER: Steel with electro zinc plating 7-8 μm

COD Type Minimum drilling depth Maximum thickness that can be fixed
131900X-TECH 10X606515
Aggiungi / Rimuovi

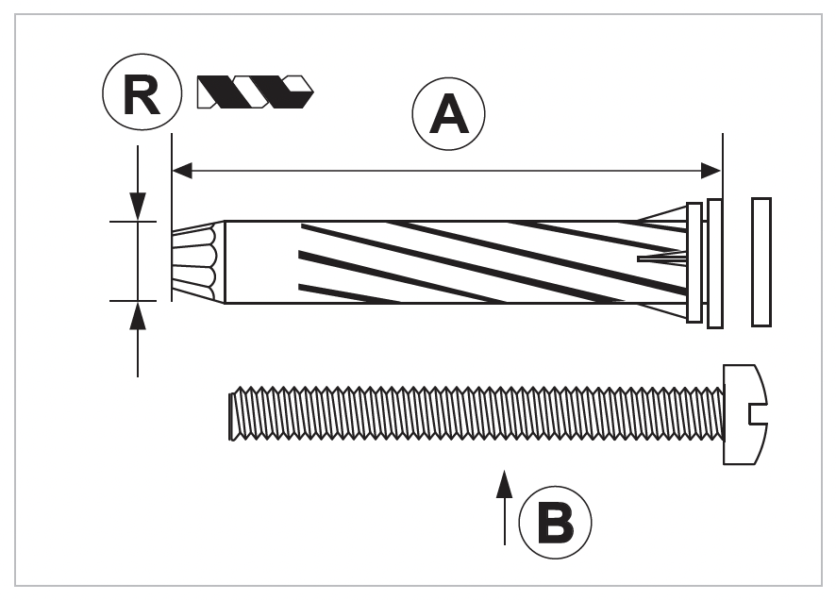

COD Type A B R
131900X-TECH 10X6060M5X6510
Aggiungi / Rimuovi

Recommended load is the average resistance loads with a safety coefficient. Data expressed in kg

COD Type Traction Cut
131900X-TECH 10X6018 Kg (single layer) - 22 kg (double layer)34 Kg (single layer) - 50 kg (double layer)
Aggiungi / Rimuovi

Venduti in Bag

COD Type Pieces pack
131900X-TECH 10X6025
